GEOGALS computing centre equipment

Enterprise compute, storage and network hardware available for rental — as individual systems or as a configured cluster sized to the workload.

CPU cores
1,708
BeeGFS storage
400 TB
InfiniBand FDR
56 Gb/s
Compute nodes
40

011,708 CPU cores

Compute

Supermicro SuperServer SYS-2029BT-HNTR

2 × Intel Xeon Gold 6148 (40 cores) · 384 GB RAM · 3.2 TB Intel NVMe SSD · InfiniBand FDR 56 Gb/s · 1 GbE

40 nodes1,600 cores

HP ProLiant DL380 Gen10 — application server

2 × Intel Xeon Gold 6148 2.40 GHz (40 cores) · 384 GB RAM · 3 × 1.6 TB Intel SSD · InfiniBand FDR 56 Gb/s · 1 GbE

2 servers80 cores

HP ProLiant DL360 Gen9 — application server

2 × Intel Xeon E5-2683 v3 2.00 GHz (28 cores) · 256 GB RAM · 5 × 400 GB Intel SSD · InfiniBand FDR 56 Gb/s · 1 GbE

1 server28 cores

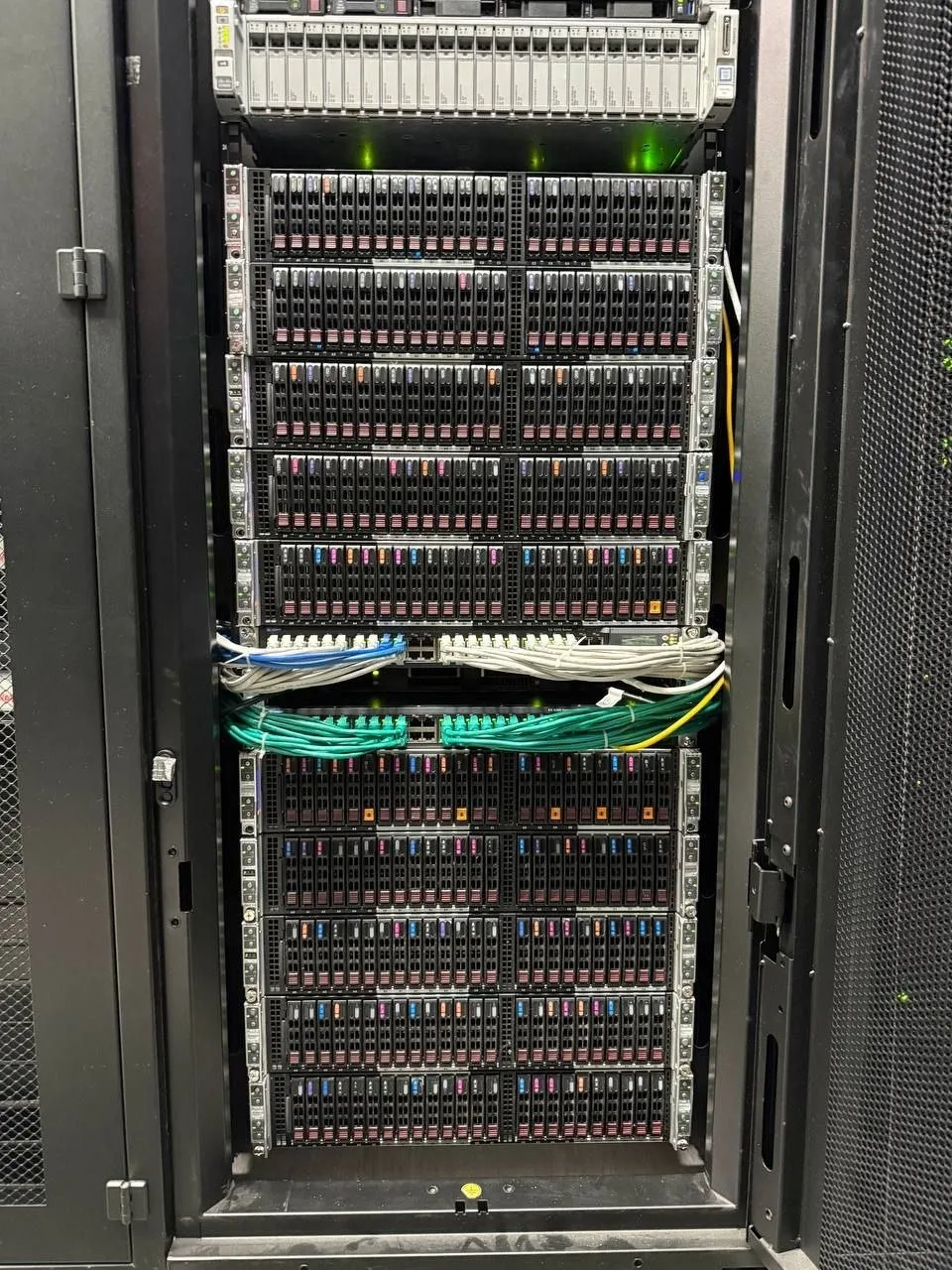

Rack of Supermicro compute servers in the GEOGALS computing centreREAL PHOTO
Compute rack, GEOGALS computing centre.

02400 TB usable

Storage — BeeGFS parallel cluster, 400 TB

Supermicro 6028R-E1CR12 — storage server

Intel Xeon E5-2637 v4 3.50 GHz · 256 GB RAM · 12 × 8 TB HDD + 2 × 200 GB Intel SSD · InfiniBand FDR 56 Gb/s · 1 GbE

6 servers

Supermicro 1018R-WC0R — SSD storage server

Intel Xeon E5-1630 v4 3.70 GHz · 128 GB RAM · 10 × 960 GB Micron SSD + 2 × 64 GB Intel SSD · InfiniBand FDR 56 Gb/s · 1 GbE

1 server

HP ProLiant DL360 Gen8 — metadata server

2 × Intel Xeon E5-2670 2.60 GHz (16 cores) · 128 GB RAM · 2 × 400 GB Intel SSD · InfiniBand FDR 56 Gb/s · 1 GbE

2 servers

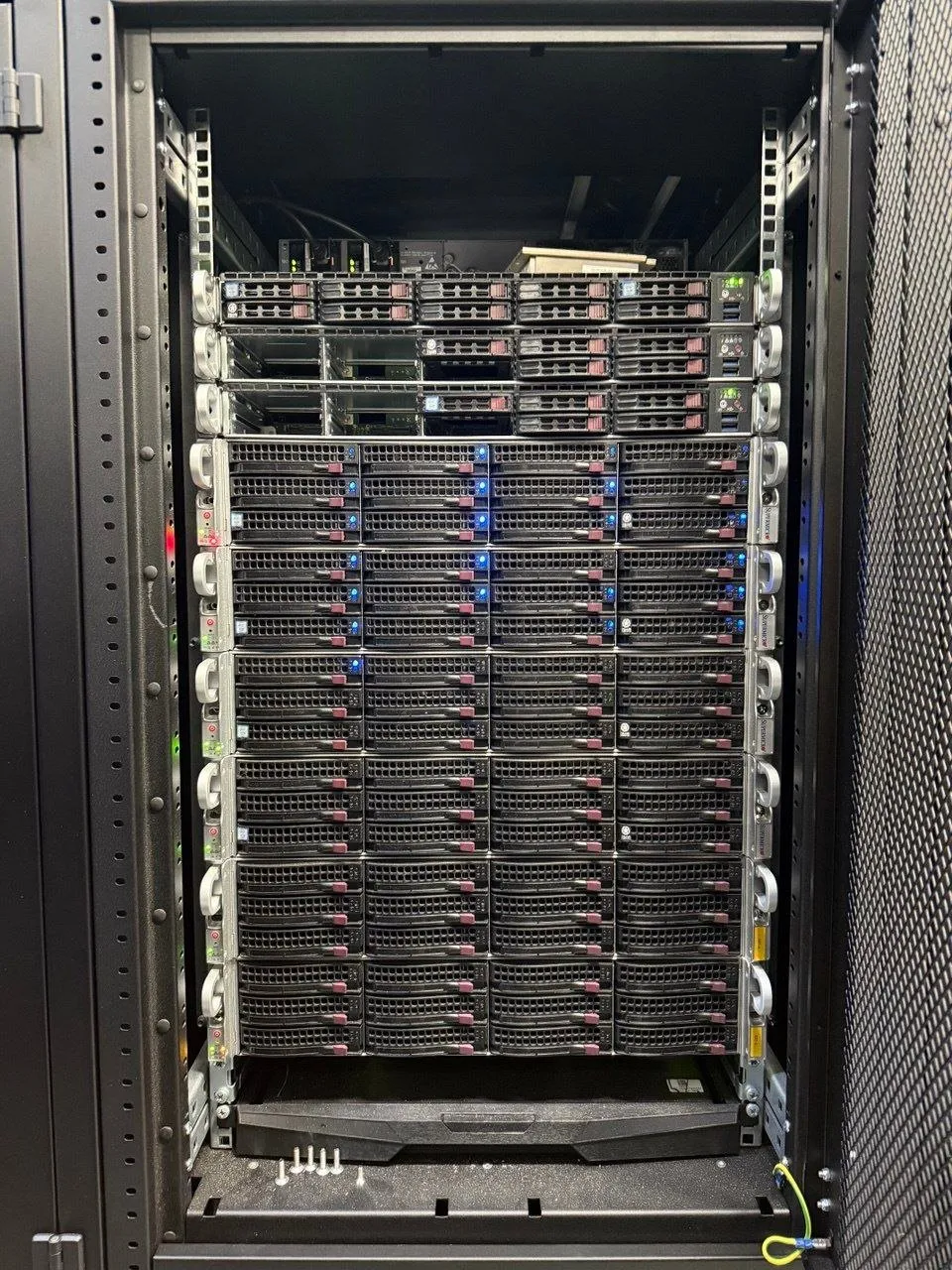

Rack of Supermicro storage servers of the BeeGFS clusterREAL PHOTO
Storage rack, GEOGALS computing centre.

03FDR InfiniBand fabric

Infrastructure and networking

HP ProLiant DL360 Gen8

2 × Intel Xeon E5-2670 2.60 GHz (16 cores) · 128 GB RAM · 6 × 400 GB Intel SSD · InfiniBand FDR 56 Gb/s · 1 GbE

1

HP ProLiant DL320 Gen8 v2

Intel Xeon E3-1220 v3 3.10 GHz (4 cores) · 256 GB RAM · 5 × 400 GB Intel SSD · InfiniBand FDR 56 Gb/s · 1 GbE

1

Supermicro SYS-1018R-WC0R

Intel Xeon E5-1630 v4 3.70 GHz · 128 GB RAM · 2 × 400 GB Intel SSD + 2 × 1 TB HDD · InfiniBand FDR 56 Gb/s · 1 GbE

1

Juniper SRX650

Services gateway / router

1

Mellanox MSX6036F-1SFR

InfiniBand FDR switch

4

Juniper EX4200-48T

Ethernet switch, 48 ports

4

Cisco WS-C2960-78 TCL

Ethernet switch

1

Tape drive 3490 E08

Tape archive drive

1

Equipment is provided as individual systems or as a configured cluster sized to the processing capacity you need — with pre-rental inspection and testing, documentation, delivery and commissioning support.

Request a configuration

Rental enquiry

Need more computing power for your next project?

Tell us the workload, the rental period and where the equipment should run. We will propose a configuration and commercial terms.
